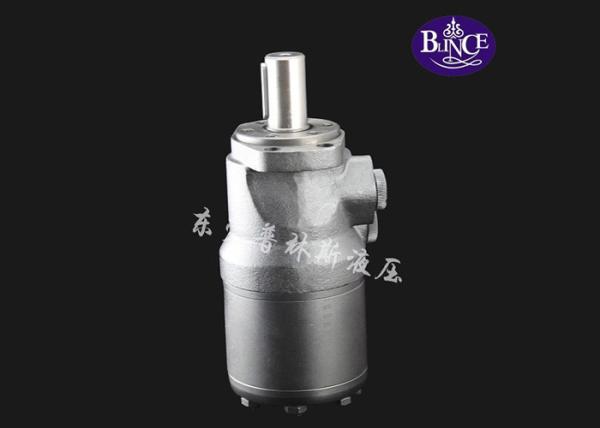

Long life OMH Hydraulic Orbit Motor 151H1005 151H1015 For Engineering Machinery
OMH series motor can widely use for construction equipment, the shaft (32mm and 35mm) is the most suitable size. The direction of shaft rotation and speed can be controlled easily and smoothly. And has a greater lateral load capacity and lon life.
Characteristics:
1. OMH / BMH Hdraulic Motor, with its shell made of ductile cast iron of adequate intensity, can be applied to situations with less load and interval operation, widely to agriculture, forestry, plastics machine tools and mimachines, such as the mould hight adjustment of the injection machine, the cleaner etc.
2. The output shafts, with the deep groove ball bearing, can bear certain axial force and radial force.
3. With the axial oil distribution structure, it is of smaller size and less weight.
4. With two inner check valves, no drain connection.
5. With cycoid group with the roller, it has a small friction and high mechanical effciency.
| Type | OMH
200 | OMH
250 | OMH
315 | OMH
400 | OMH
500 |
| Displacement (cc/rev) | 203.2 | 255.9 | 316.5 | 406.4 | 489.2 |
Max torque
(n.m) | cont | 510 | 621 | 740 | 850 | 830 |
| inter | 439 | 348 | 282 | 220 | 184 |
Max pressure
(mpa) | cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| inter | 20 | 20 | 20 | 19 | 16 |
Max speed rate
(rpm) | cont | 366 | 290 | 236 | 183 | 155 |
| inter | 439 | 348 | 282 | 220 | 184 |
Max flow
(L/min) | cont | 75 | 75 | 75 | 75 | 75 |
| inter | 90 | 90 | 90 | 90 | 90 |
Weight (kg)
| 10.5 | 11 | 11.5 | 12.3 | 13.0 |
Flange:
1)4× Ø 13.5 Rhomb× Flange, Pilot Ø 82.5× 6
2)2× Ø 13.5 Rhomb× Flange, Pilot Ø 82.5× 6
Output shaft:
1)Shaft Ø 32, parallel key 10× 8× 45
2)Shaft Ø 35, parallel key 10× 8× 45
3)Shaft Ø 31.75, splined key 14-DP12/24
4)Long Shaft Ø 31.75, splined key 14-DP12/24
5)Shaft Ø 32, parallel key 7.96× 7.96× 31.75
6)Cone shaft Ø 35, parallel key B6× 6× 20
7)Shaft Ø 25.4, parallel key SAE 6B
Drain port:
1) G1/2 Manifold mount 4× M8, G1/4
2) M22× 1.5 Manifold mount 4× M8, M14× 1.5
3) 7/8-14 O× Ring Manifold mount 4× 5/16-18UNC, 7/16-20UNF
4) 1/2-14 NPTF Manifold mount 4× 5/16-18UNC, 7/16-20UNF
5) PT(Rc) 1/2 Manifold mount 4× M8, PT(Rc)1/4
Payment terms
1, Small amount accept Paypal
2, Western Union
3, Large orders We usually accept T/T(with 30% deposit, the balance before shipment)
My friends, if you are interested in our hydraulic motor OMH/BMH. Pls send me enquiry!
We also provide hydraulic motors such as OMM, OMP, OMR, OMS, OMT, OMV, OZ, OK, OM1, OM2, OM3, OM4, OMH, OMJ.
Vane pumps such as PV2R series, V series and VQ series, SQP series.
All these products are standard, best quality. If you are interested in any one of this products, don't hesitate to contact me.
