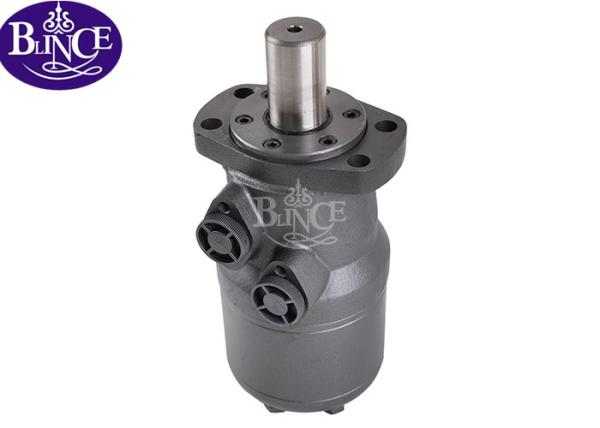

OMH BMH Hydraulic Orbital Motor Used For Tractor Construction Machinery
BMH series motor can widely use for construction equipment, the shaft (32mm and 35mm) is the most suitable size. The direction of shaft rotation and speed can be controlled easily and smoothly. And has a greater lateral load capacity and lon life.
Features:
*Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency.
*Shaft seal can bear high pressure of back and the motor can be used in parallel or series.
*Special design in the driver-linker and prolong operating life.
*Special design for distribution system can meet the requirement of low noise of unit.
*Compact volume and easy installation.
| Type |
OMH
200
|
OMH
250
|
OMH
315
|
OMH
400
|
OMH
500
|
| Displacement (cc/rev) |
203.2 |
255.9 |
316.5 |
406.4 |
489.2 |
|
Max torque
(n.m)
|
cont |
510 |
621 |
740 |
850 |
830 |
| inter |
439 |
348 |
282 |
220 |
184 |
|
Max pressure
(mpa)
|
cont |
17.5 |
17.5 |
17.5 |
15.5 |
12.5 |
| inter |
20 |
20 |
20 |
19 |
16 |
|
Max speed rate
(rpm)
|
cont |
366 |
290 |
236 |
183 |
155 |
| inter |
439 |
348 |
282 |
220 |
184 |
|
Max flow
(L/min)
|
cont |
75 |
75 |
75 |
75 |
75 |
| inter |
90 |
90 |
90 |
90 |
90 |
|
Weight (kg)
|
10.5 |
11 |
11.5 |
12.3 |
13.0 |
Displacement (cc):
OMH160, OMH200, OMH250, OMH315, OMH400, OMH500
Flange:
1)4× Ø 13.5 Rhomb× Flange, Pilot Ø 82.5× 6
2)2× Ø 13.5 Rhomb× Flange, Pilot Ø 82.5× 6
Output shaft:
1)Shaft Ø 32, parallel key 10× 8× 45
2)Shaft Ø 35, parallel key 10× 8× 45
3)Shaft Ø 31.75, splined key 14-DP12/24
4)Long Shaft Ø 31.75, splined key 14-DP12/24
5)Shaft Ø 32, parallel key 7.96× 7.96× 31.75
6)Cone shaft Ø 35, parallel key B6× 6× 20
7)Shaft Ø 25.4, parallel key SAE 6B
Drain port:
1) G1/2 Manifold mount 4× M8, G1/4
2) M22× 1.5 Manifold mount 4× M8, M14× 1.5
3) 7/8-14 O× Ring Manifold mount 4× 5/16-18UNC, 7/16-20UNF
4) 1/2-14 NPTF Manifold mount 4× 5/16-18UNC, 7/16-20UNF
5) PT(Rc) 1/2 Manifold mount 4× M8, PT(Rc)1/4
