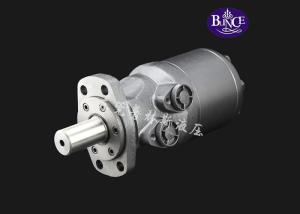

Slow Speed OMH BMH 200 / 250 / 315 Hydraulic Motor For Timber Grab Forestry Industry
The Concrete Pumps Spare Parts Hydraulic Motor OMH 500 is a concrete pumps parts for concrete pumps combined use with other concrete parts. It can be widely used in the pumps construction of various types of concrete structures like industrial and civil buildings, bridges, roads, and other types of infrastructure.
This pipes can only be used in concrete construction operations, but not in any other operations, like dragging, moving, or hoisting heavy articles or personnel. The motor is also not allowed to be used in any other machinery such as road roller.
Characteristics:
1.Advanced manufacturing devices for the Gerotor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency.
2.Shaft seal can bear high pressure of back and the motor can be used in parallel or in series.
3.Special design in the driver-linker and prolong operation life.
4.Advanced design in disc distribution flow, which can automatically compensate in operating.
5.The output shaft adopts in tapered roller bearings that permit high axial and radial forces. The case can offers capacities of high pressure and high torque in the wide of applications.
6.Various kinds of flange, output shaft and oil port mounting dimension.
| Type | OMH
200 | OMH
250 | OMH
315 | OMH
400 | OMH
500 |
| Displacement (cc/rev) | 203.2 | 255.9 | 316.5 | 406.4 | 489.2 |
Max torque
(n.m) | cont | 510 | 621 | 740 | 850 | 830 |
| inter | 439 | 348 | 282 | 220 | 184 |
Max pressure
(mpa) | cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| inter | 20 | 20 | 20 | 19 | 16 |
Max speed rate
(rpm) | cont | 366 | 290 | 236 | 183 | 155 |
| inter | 439 | 348 | 282 | 220 | 184 |
Max flow
(L/min) | cont | 75 | 75 | 75 | 75 | 75 |
| inter | 90 | 90 | 90 | 90 | 90 |
Weight (kg)
| 10.5 | 11 | 11.5 | 12.3 | 13.0 |
Flange:
1)4× Ø 13.5 Rhomb× Flange, Pilot Ø 82.5× 6
2)2× Ø 13.5 Rhomb× Flange, Pilot Ø 82.5× 6
Output shaft:
1)Shaft Ø 32, parallel key 10× 8× 45
2)Shaft Ø 35, parallel key 10× 8× 45
3)Shaft Ø 31.75, splined key 14-DP12/24
4)Long Shaft Ø 31.75, splined key 14-DP12/24
5)Shaft Ø 32, parallel key 7.96× 7.96× 31.75
6)Cone shaft Ø 35, parallel key B6× 6× 20
7)Shaft Ø 25.4, parallel key SAE 6B
Drain port:
1) G1/2 Manifold mount 4× M8, G1/4
2) M22× 1.5 Manifold mount 4× M8, M14× 1.5
3) 7/8-14 O× Ring Manifold mount 4× 5/16-18UNC, 7/16-20UNF
4) 1/2-14 NPTF Manifold mount 4× 5/16-18UNC, 7/16-20UNF
5) PT(Rc) 1/2 Manifold mount 4× M8, PT(Rc)1/4
My friends, if you are interested in our hydraulic motor OMH/BMH. Pls send me enquiry!
We also provide hydraulic motors such as OMM, OMP, OMR, OMS, OMT, OMV, OZ, OK, OM1, OM2, OM3, OM4, OMH, OMJ.
Vane pumps such as PV2R series, V series and VQ series, SQP series.
All these products are standard, best quality. If you are interested in any one of this products, don't hesitate to contact me.
