Axial Cycloid OMH 500 Hydraulic Motor OMH 500 Gerotor Excavator Support

Name: Axial Cycloid OMH 500 Hydraulic Motor OMH 500 Gerotor Excavator Support
Brand: BLINCE
Price: 1 USD

Wholesale Axial Cycloid OMH 500 Hydraulic Motor OMH 500 Gerotor Excavator Support from china suppliers

Brand Name : BLINCE

Model Number : OMH 500cc hydraulic motor

Certification : ISO9001:2008

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T, Western Union, , L/C,Paypal

Supply Ability : 3000pcs/month

Delivery Time : 15-20days

Packaging Details : Carton or wood case

Displacement : 489.2mL/rev

Speed : 155rpm

Torque : 830 n.m

Flow : 75L/min

Flange : Square and rhombus flange

Warranty : One year

Usage : Hydraulic oil

Contact Now

OMH Axial Cycloid Hydraulic Motor OMH 500 Gerotor Hydraulic Motor For Excavator

OMH series motor adapt the advanced Geroler gear set design with shaft distribution flow, which can automatically compensate in operating with high pressure, provide reliable and smooth operation, high efficiency and long life.

Characteristic features:

*Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency.

*Shaft seal can bear high pressure of back and the motor can be used in parallel or series.

*Special design in the driver-linker and prolong operating life.

*Special design for distribution system can meet the requirement of low noise of unit.

*Compact volume and easy installation.

Type		OMH 200	OMH 250	OMH 315	OMH 400	OMH 500
Displacement (cc/rev)		203.2	255.9	316.5	406.4	489.2
Max torque (n.m)	cont	510	621	740	850	830
Max torque (n.m)	inter	439	348	282	220	184
Max pressure (mpa)	cont	17.5	17.5	17.5	15.5	12.5
Max pressure (mpa)	inter	20	20	20	19	16
Max speed rate (rpm)	cont	366	290	236	183	155
Max speed rate (rpm)	inter	439	348	282	220	184
Max flow (L/min)	cont	75	75	75	75	75
Max flow (L/min)	inter	90	90	90	90	90
Weight (kg)		10.5	11	11.5	12.3	13.0

Product Tags:

omh 400 hydraulic motor

sauer hydraulic motor

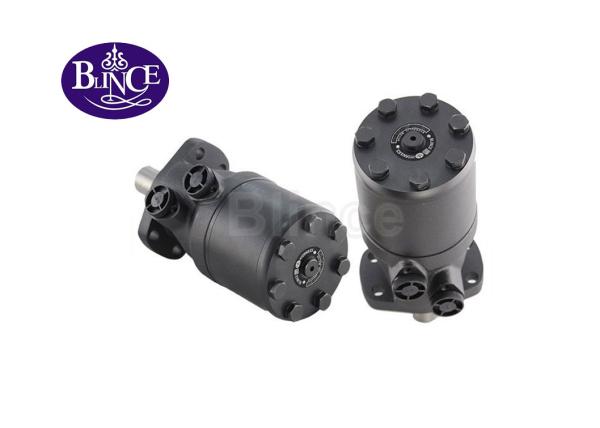

Axial Cycloid OMH 500 Hydraulic Motor OMH 500 Gerotor Excavator Support Images
