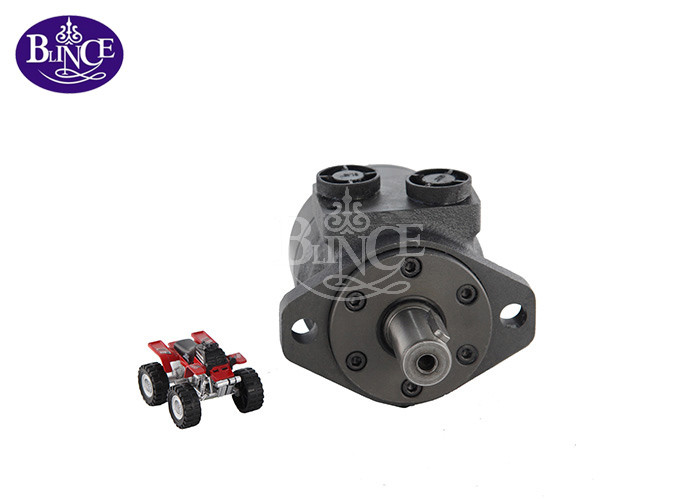

DS Light Weight Mini Gerotor Hydraulic Motor OK Hydro Motor For Skid Steer Loader
gerotor hydraulic motor is a small, economical type, designed with Spool Valve, which adapt the gerotor gear set design and provide compact volume, high power and low weight.
OK type motor perfectly replace danfoss DS, and adapt the advanced Geroler gear set design with shaft distribution flow, which can automatically compensate in operating with high pressure, provide reliable and smooth operation, high efficiency and long life, high power.
Features:
1. Advanced design of the spool valve and Gerotor gear, has small volume, high efficiency and long life.
2. Credible shaft seal , which can bear high pressure of motor, can also be used in parallel or in series.
3.Direction of shaft rotation and speed can be controlled easily
4. Variety of connection types of flange, output shaft and oil port
5. Best combination of efficiency and economy in medium duty applications
Applications:
applicated in (sweeper machine / injection molding machine / winch / lawn mower / mini garden tractors/ wheat harvest machine / fish boat/ mini crawler tractor / winch machine / convery equipment/ road line maker /etc.
| Type | 0K 36 | 0K 50 | 0K 80 | 0K 100 | 0K 125 | 0K 160 | 0K 200 | 0K 250 | 0K 315 | 0K 375 |
| Displacement(cc/rev) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.5 |
| Max torque (n.m) | cont | 66 | 100 | 158 | 200 | 248 | 315 | 339 | 403 | 398 | 373 |
| | inter | 83 | 129 | 196 | 242 | 298 | 384 | 419 | 474 | 498 | 466 |
| Max pressure (Mpa) | cont | 14 | 14 | 14 | 14 | 14 | 14 | 12.5 | 11 | 9 | 7.5 |
| | inter | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 15.5 | 14 | 12.5 | 9 |
| Max speed | cont | 1111 | 780 | 744 | 595 | 480 | 382 | 301 | 238 | 191 | 162 |
| Max flow (L/min) | cont | 40 | 40 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
