Brand Name : BLINCE
Model Number : OZ hydraulic motor
Place of Origin : China
MOQ : 1
Price : Negotiation
Payment Terms : T/T, Western Union
Supply Ability : 3000pcs/month
Delivery Time : 15-20days
Packaging Details : Carton or wood case
Certification : ISO9001:2008
Displacement : 36 ~400cc/rev
Speed : 104~1081rpm
Torque : 51~392n.m
Power : 3.4~5.2kw
Material : cast iron
Warranty : One year
Color : Black
DH Small Gerotor Hydraulic Motor OZ 36 50 80 100cc Micro Orbital Motor
OZ series motor are small volume, economical type, which is designed with shaft distribution flow, which adapt the gerotor gear set design and provide compact volume, high power and low weight. It can be replaced danfoss DH series orbit motor.
Characteristic features:
1. Advanced manufacturing devices for the gerotor gear set, which provide small volume, high efficiency and long life.
2.Shaft seal can bear high pressure of motor of which can be used in parallel or in series.
3. Advanced construction design, high power and low weight.
code |
Displacement (cm/rem) |
Max.speed (rpm) |
Max.torque (N.m) |
Max.output (kw) |
Max pressure (MPa) |
Max.oil Flow(L/min) |
|||
cont. | cont. | int. | cont. | int. | cont. | int. | cont. | ||
OZ36 | 37 | 1081 | 51 | 68 | 5.2 | 8.6 | 10.5 | 14 | 40 |
OZ50 | 51.7 | 774 | 73 | 96 | 5.2 | 8.6 | 10.5 | 14 | 40 |
OZ80 | 77.7 | 515 | 106 | 143 | 5.2 | 8.6 | 10.5 | 14 | 40 |
OZ100 | 96.2 | 416 | 140 | 178 | 5.2 | 8.6 | 10.5 | 14 | 40 |
OZ125 | 117.9 | 339 | 162 | 218 | 5.2 | 8.6 | 10.5 | 14 | 40 |
OZ160 | 155.5 | 257 | 216 | 288 | 5.2 | 8.6 | 10.5 | 14 | 40 |
OZ200 | 189.9 | 211 | 264 | 351 | 5.2 | 8.6 | 10.5 | 14 | 40 |
OZ250 | 231 | 173 | 281 | 351 | 4.6 | 7 | 9 | 11.5 | 40 |
OZ315 | 311.7 | 128 | 312 | 433 | 3.4 | 5.8 | 7 | 10.5 | 40 |
OZ400 | 386.2 | 104 | 392 | 582 | 3.4 | 5.8 | 7 | 10.5 | 40 |
![]() |

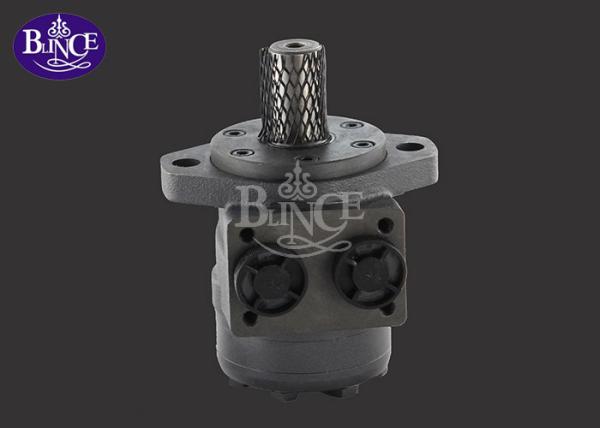

DH Small Gerotor Hydraulic Motor , OZ 36 50 80 100cc Micro Orbit Hydraulic Motor Images |
