Brand Name : BLINCE
Model Number : OZ hydraulic motor
Place of Origin : China
MOQ : 1
Price : 100-200usd/pc
Payment Terms : T/T, Western Union
Supply Ability : 3000pcs/month
Delivery Time : 15-20days
Packaging Details : Carton or wood case
Displacement : 36 ~400cc/rev
Speed : 104~1081rpm
Torque : 51~392n.m
Power : 3.4~5.2kw
Material : cast iron
Warranty : One year
OZ series motor are small volume, economical type, which is designed with shaft distribution flow, which adapt the gerotor gear set design and provide compact volume, high power and low weight.
Characteristic features:
1. Advanced manufacturing devices for the gerotor gear set, which provide small volume, high efficiency and long life.
2.Shaft seal can bear high pressure of motor of which can be used in parallel or in series.
3. Advanced construction design, high power and low weight.
code |
Displacement (cm/rem) |
Max.speed (rpm) |
Max.torque (N.m) |
Max.output (kw) |
Max pressure (MPa) |
Max.oil Flow(L/min) |
|||
cont. | cont. | int. | cont. | int. | cont. | int. | cont. | ||
OZ36 | 37 | 1081 | 51 | 68 | 5.2 | 8.6 | 10.5 | 14 | 40 |
OZ50 | 51.7 | 774 | 73 | 96 | 5.2 | 8.6 | 10.5 | 14 | 40 |
OZ80 | 77.7 | 515 | 106 | 143 | 5.2 | 8.6 | 10.5 | 14 | 40 |
OZ100 | 96.2 | 416 | 140 | 178 | 5.2 | 8.6 | 10.5 | 14 | 40 |
OZ125 | 117.9 | 339 | 162 | 218 | 5.2 | 8.6 | 10.5 | 14 | 40 |
OZ160 | 155.5 | 257 | 216 | 288 | 5.2 | 8.6 | 10.5 | 14 | 40 |
OZ200 | 189.9 | 211 | 264 | 351 | 5.2 | 8.6 | 10.5 | 14 | 40 |
OZ250 | 231 | 173 | 281 | 351 | 4.6 | 7 | 9 | 11.5 | 40 |
OZ315 | 311.7 | 128 | 312 | 433 | 3.4 | 5.8 | 7 | 10.5 | 40 |
OZ400 | 386.2 | 104 | 392 | 582 | 3.4 | 5.8 | 7 | 10.5 | 40 |
![]() |

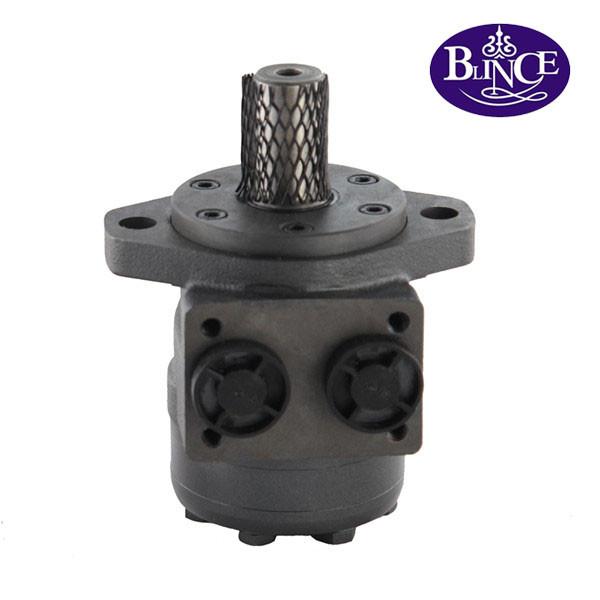

Blince OZ 80 Orbit Hydraulic Motor Parts Small Oil High Speed Stable 104 ~ 1081rpm Images |
