Brand Name : BLINCE
Model Number : OMV hydraulic motor
Certification : ISO9001:2008
Place of Origin : China
MOQ : 1
Price : Negotiation
Payment Terms : T/T, Western Union, L/C, Paypal
Supply Ability : 3000pcs/month
Delivery Time : 15-20days
Packaging Details : Carton or wood case
Material : Cast iron
Flange : two kinds square flange
Shaft : cylinder, spline, tapered
Color : Black
Type : Gerotor Motor/ Orbit Motor
Market : Global
Warranty : one year
Max Speed : 510
Standard or nonstandard : Standard
M S hydraulic motor OMV BMV heavy duty hydraulic motor
Blince OMV motor heavy duty hydraulic motor adapt the advanced Geroler gear set designed with disc distribution flow and high pressure.The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications
BMV / OMV Motors widely used for Hydraulic Wood Splitter,Excavator Splitter and Mining Equipment.
• Constant operating torque over a wide speed range
• Smooth running over the entire speed range
• High starting torque
• High efficiency
• High return pressure without the use of drain line (High pressure shaft seal)
• Long life under extreme operating conditions
• High radial and axial bearing capacity
• Robust and compact design
• Suitable for a wide varie
OMV hydraulic motor detail model and data sheet
Type |
OMV 315 |
OMV 400
|
OMV 500 |
OMV 630 |
OMV 800 |
OMV 1000 |
|
Displacement (cc/rev) | 333 | 419 | 518 | 666 | 801 | 990 | |
Max torque (n.m) |
cont | 920 | 1180 | 1460 | 1660 | 1880 | 2015 |
int | 1110 | 1410 | 1760 | 1940 | 2110 | 2280 | |
Max pressure (Mpa) |
cont | 20 | 20 | 20 | 18 | 16 | 14 |
int | 24 | 24 | 24 | 21 | 18 | 16 | |
Max speed rate (rpm) |
cont | 510 | 500 | 400 | 320 | 250 | 200 |
int | 630 | 600 | 480 | 380 | 300 | 240 | |
Max flow (L/min) |
cont | 160 | 200 | 200 | 200 | 200 | 200 |
int | 200 | 240 | 240 | 240 | 240 | 240 | |
Weight(kg) | 31.8 | 32.6 | 33.5 | 34.9 | 36.5 | 38.6 |
We also provide replacement Danfoss Hydraulic motor
OMM Series Gerotor Hydraulic Motor
OMP Series Gerotor Hydraulic Motor
OMR Series Gerotor Hydraulic Motor
OMS Series Gerotor Hydraulic Motor
OMT Series Gerotor Hydraulic Motor
OMV Series Gerotor Hydraulic Motor
OMH Series Gerotor Hydraulic Motor
and Eaton Char-lynn J 129 series, H 101 series, S 103 series, 2000 104 series, 6000 series 112 113 114 orbit motor.
If you are interested in our products, please contact us to get more information.
![]() |

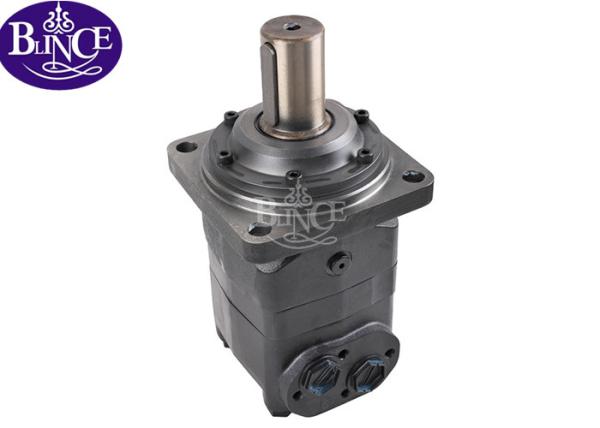

M S OMV BMV Heavy Duty Gerotor Hydraulic Motor With Spline , Tapered Shaft Images |
