Eaton Char lynn H series 80cc 100cc Small Hydraulic Motors , Low Pressure Hydraulic Motor
Blince OMPH /BMPH series low pressure hydraulic motor are small volume, economical type, which is designed with shaft distribution flow, which adapt the Gerotor gear set design and provide compact volume, high power and low weight.
It is equivalent with Eaton Char-lynn 101 H series gerotor hydraulic motor.
Geometric displacement: 36cc, 50cc, 80cc, 100cc, 125cc, 160cc, 200cc, 250cc, 315cc, 400cc, 500cc.

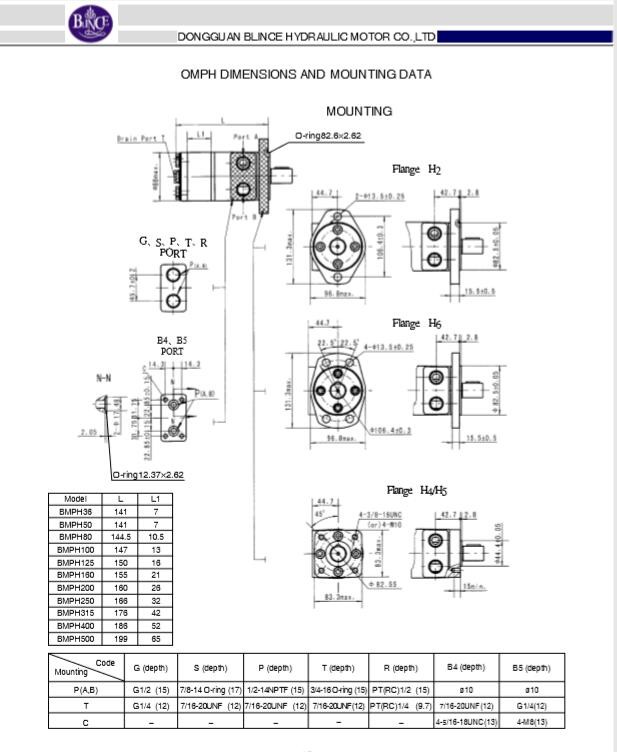

Flange: two bolts/ four bolts rhomb flange, four bolts square flange.
Shaft: 25 parallel key, 25.4 woodruff key, 25.4 splined tooth
My friends, if you are interested in our hydraulic motor OMH/BMH. Pls send me enquiry!
We also provide hydraulic motors such as OMM, OMP, OMR, OMS, OMT, OMV, OZ, OK, OM1, OM2, OM3, OM4, OMH, OMJ.
Vane pumps such as PV2R series, V series and VQ series, SQP series.
All these products are standard, best quality. If you are interested in any one of this products, don't hesitate to contact me.
| type | OMP OMPH 36 | OMP OMPH 50 | OMP OMPH 80 | OMP OMPH 100 | OMP OMPH 125 | OMP OMPH 160 | OMP OMPH 200 | OMP OMPH 250 | OMP OMPH 315 | OMP OMPH 400 | OMP OMPH 500 |
| Geometric displacement | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 |
| Max.speed.(rpm) | con. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| | int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 |
| Max.torque(N.m | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 383 | 375 | 360 | 385 |
| | int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 |
| Max.output(KW) | cont. | 8.0 | 10.0 | 10.0 | 11.0 | 10.0 | 10.0 | 10.0 | 8.5 | 7.0 | 6.0 | 5.0 |
| | int | 11.5 | 12.0 | 12.0 | 13.0 | 12.0 | 12.0 | 12.0 | 10.5 | 8.5 | 7.0 | 6.0 |
| Max.pressure Drop(Mpa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| | int | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 |
| Max.flow(L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| | int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
Please feel free to contact us if have any questions or inquiries.
Thanks for choosing Blince Hydraulic.
