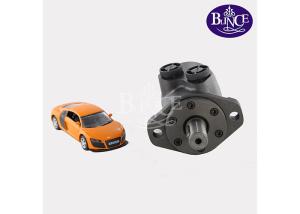

Hydraulic motor OMP Series 36 / 50 / 80 / 100 / 125 / 160 / 200 / 250
/ 315 / 400 / 500cc hydraulic motor
Hydraulic Winch Motor omp motor, OMP series motor are small volume, economical type, which is designed with shaft distribution flow, which adapt the Gerotor gear set design and provide compact volume, high power and low weight.
Characteristic:
1. Advanced manufacturing devices for the Gerotor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency.
2. At seal can bear high pressure of back and the motor can be used in parallel or in series.
3. Eial design in the driver-linker and prolong operating life
4. Eial design for distribution system can meet the requirement of low noise of unit.
| type | OMP OMPH 36 | OMP OMPH 50 | OMP OMPH 80 | OMP OMPH 100 | OMP OMPH 125 | OMP OMPH 160 | OMP OMPH 200 | OMP OMPH 250 | OMP OMPH 315 | OMP OMPH 400 | OMP OMPH 500 |
| Geometric displacement | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 |
| Max.speed.(rpm) | con. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 |
| Max.torque(N.m | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 383 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 |
| Max.output(KW) | cont. | 8.0 | 10.0 | 10.0 | 11.0 | 10.0 | 10.0 | 10.0 | 8.5 | 7.0 | 6.0 | 5.0 |
| int | 11.5 | 12.0 | 12.0 | 13.0 | 12.0 | 12.0 | 12.0 | 10.5 | 8.5 | 7.0 | 6.0 |
| Max.pressure Drop(Mpa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 |
| Max.flow(L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
Our motors adapt high quality cast iron, high technology machinery and testing machine to produce.
Every motor must be tested before dispatched to our customers. Most our customers are satisfied
with motor, because they are high efficiency, long life and low noise.
