Brand Name : BLINCE
Model Number : OMM 20 32 40 50
Certification : ISO9001:2008
Place of Origin : China
MOQ : 1
Price : Negotiation
Payment Terms : Western Union, T/T, paypal, , L/C
Supply Ability : 3000pcs/month
Delivery Time : 10-20 working days
Packaging Details : Carton Packing or wooden box
Max Speed : Cont 1000rpm
Pressure : 7-10Mpa
Torque : Cont 25-46 n.m
Flow : Cont 20 L/min
Appearance : Phosphating & Painting
Displacement range : 19.9-50.3cc/rev
Output power : cont1.8-2.4kw
Price Of Hydraulic Motor Replacement Danfoss 151G0041 151G0040 For Power Station
OMM series motor are small volume, low weight which is designed with shaft distritubion flow, which adapt the Gerotor gear set design and provide compact volume,high power and low weight, widely used in agriculture, forestry, plastics, machine tools and mine machines, etc.
OMM 50cc hydraulic motor,end-port and side port version OMM hydraulic motor,orbital hydraulic motor suppliers
Characteristic features:
* Advanced manufacturing devices for the Gerotor gear set, which provide small volume, high efficiency and long life.
* Shaft seal can bear high pressure of motor of which can be used in parallel or in series.
* Advanced construction design, high power and low weight.
Blince OMM equivalent with Danfoss OMM series and Char-lynn J 129 series | |||||||
Type | OMM 8 | OMM 12.5 | OMM 20 | OMM 32 | OMM 40 | OMM 50 | |
Geometric displacement | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
Max.speed (rpm) | cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 |
int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
Max.torque(N.m) | cont. | 11 | 16 | 25 | 40 | 45 | 46 |
int. | 15 | 23 | 35 | 57 | 70 | 88 | |
Max.output(KW) | cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 |
Int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
Max.pressure Drop (Mpa) | cont. | 10 | 10 | 10 | 10 | 9 | 7 |
int. | 14 | 14 | 14 | 14 | 14 | 14 | |
Max.flow(L/min) | cont. | 16 | 20 | 20 | 20 | 20 | 20 |
int. | 20 | 25 | 25 | 25 | 25 | 25 | |
Weight(kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 |
Applicated in sweeper machine / injection molding machine / winch / lawn mower / mini garden tractors/ wheat harvest machine / fish boat/ mini crawler tractor / winch machine / convery equipment/ road line maker /etc.
Please feel free to contact us if have any questions or inquiries.
Thanks for choosing Blince Hydraulic.
Email: sales@blince.com
![]() |

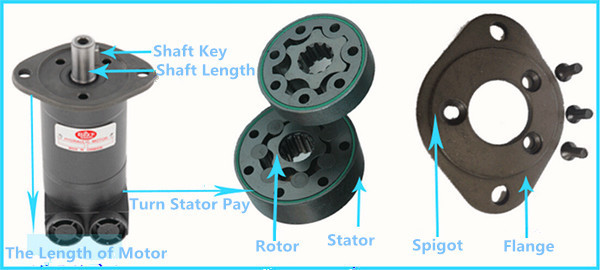

Power Station High Torque OMM Hydraulic Motor Replacement Danfoss 151G0041 151G0040 Images |
